Sonotech 5 Wired probe fetal doppler Sonotech 5W Wireless probe fetal doppler Высокая чувствительность и простота в эксплуатации Встроенная память для хранения данных Функция сигнализации при отклонении от нормы ЖК-дисплей с белыми цифрами на черном фоне +30 часов работы от 3 батареек типа AAA Встроенный динамик (=1

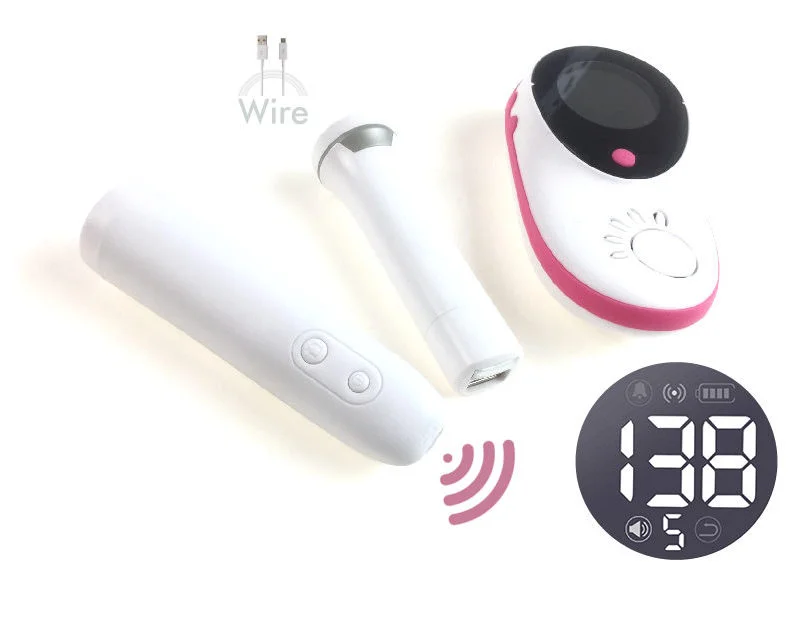

Sonotech 5 Wired probe fetal doppler
Sonotech 5W Wireless probe fetal doppler
High sensitivity and Easy to operate
Auto Power Off on No Signal (2 min) Function

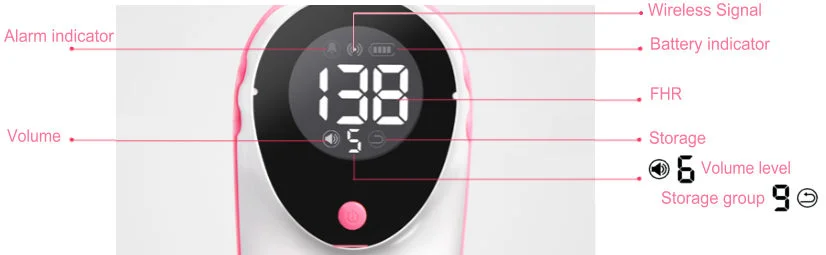

Indicator for :
Signal level (between wirless probe and the doppler)
Alarm for ubnormal FHR range
Volume (0-6)
Battery capacity
Storage number (0-9)
Fetal Doppler Probes
Sonotech 5W Probe :
Built in rechargable battery
Record function can be done by probe
Technical Specification
Classification:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B equipment
Harmful Liquid Proof Degree: IP×4
Suitable Using Range: Suitable for use after the 16th week of pregnancy
Physical Characteristic:
Main device: 132mm(L)×68mm(W)×34mm(H)
Probe:
Sonotech 5 models:31mm(Ø)×103mm(H)
Sonotech 5W models:32mm(Ø)×120mm(H)
LCD Display:38mm(Ø)
Weight: About 200g (including batteries) Environment:
Working
environment:Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric Pressure: 70kpa ~106kpa
Transport and Storage:
Temperature:-40℃~ + 55℃ Humidity:≤90%
Atmospheric Pressure: 50kPa ~106kpa
Power:
power supply.
AC/DC Adaptor:
Input:AC100~240V,50Hz/60Hz,0.2A MAX.
Output:DC 5V,1000mA,5VA.
FHR Performance:
FHR Measuring Range:50-210BPM(Beat per minute) Resolution:1BPM
Accuracy: ±2BPM Probe:
Working Frequency:2.5MHz±10%
Output power: <10mW/cm²
Spatial-peak temporal peak acoustic pressure: <0.1Mpa
Ovearll Sensitivity: ≥90dB
